XMsg Lifecycle

Flow Diagram

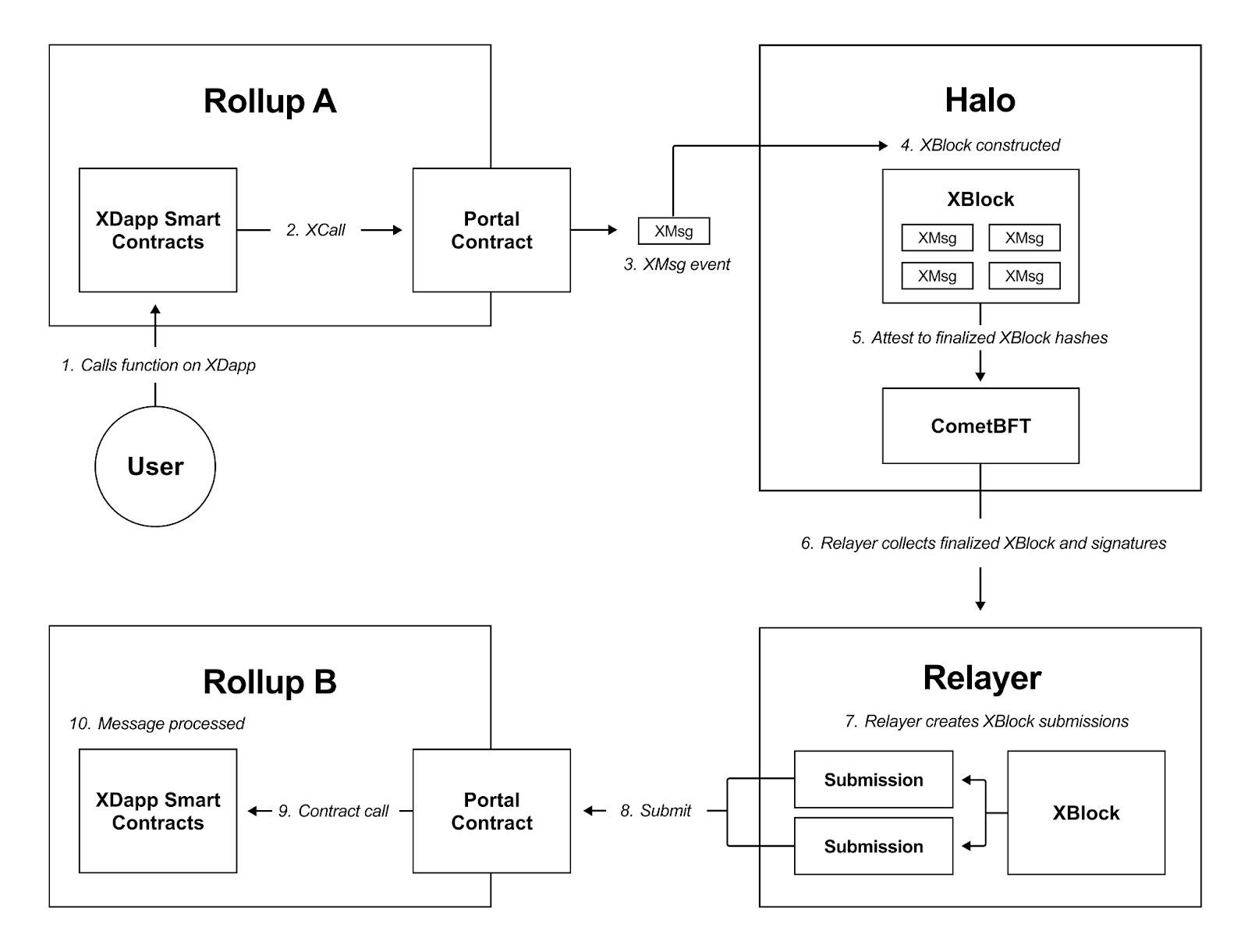

The following steps provide a comprehensive overview of how an XMsg travels from a source rollup VM to a destination rollup VM. This process is visualized in Figure 4.

Relaying of XMsg through the network

Steps

1. User Call

1. A user calls an xapp smart contract function on a rollup VM.

2. Smart Contract Logic

2. The smart contract converts the user’s logic into an xcall that is made on the rollup VM’s Portal contract. xcall are defined in Solidity as below (read more in the develop section):

   omni.xcall(
     uint64 destChainId,  // desintation chain id
     address to,           // contract address on the dest rollup to execute the call on
     bytes memory data     // calldata for the transaction, abi encoded
   )

3. Portal Contract Event Emission

3. The Portal contract converts the xcall into an XMsg and emits the corresponding XMsg event. XMsg events are defined in Solidity as:

   event XMsg (
     address SourceMsgSender     // Sender on source chain, set to msg.Sender
     uint256 XStreamOffset       // Monotonically incremented offset of XMsg in the XStream
     uint256 DestChainID         // Target chain ID as per https://chainlist.org/
     address DestAddress         // Target/To address to "call" on destination chain
     bytes   Data                // Data to provide to "call" on destination chain
     uint256 DestGasLimit        // Gas limit to use for "call" on destination chain
   )

4. Validator XMsg Packaging

4. Validators package multiple XMsg into an XBlock. It is a deterministic one-to-one mapping. In halo, XBlock are typed as:

   // XBlock represents the cross-chain properties of a source chain finalised block.
   type XBlock (
     uint         SourceChainID  // Source chain ID as per https://chainlist.org
     uint         BlockHeight    // Height of the source chain block
     bytes32      BlockHash      // Hash of the source chain block
     XMsg[]       Msgs           // XMsg events included in the source block.
     XReceipt[]   Receipts       // XReceipt events included in the source block.
   )

   XBlock structure provides the following properties to the Omni Network:

   • Succinctly verifiable merkle-multi-proofs for sub-ranges of XMsg per source-target pair allowing relayers to manage submission costs at single XMsg granularity.
   • Omni Consensus attestations are not required for source chain blocks without any cross chain messages (aka empty XBlock).
   • Relayer submissions are not required on destination chains for batches without cross chain messages.
   • The logic to create a XBlock is deterministic for any finalized source chain block height.


   XBlock Storage and Calculation

   XBlock is not stored as they are deterministically calculated from a source blockchain. So in effect, the source blockchain stores them. Any component that depends on XBlock, calculates it from a source chain.

   $XBlock = f(chain_A)$ where $f(x)$ is a deterministic pure function that takes a finalized blockchain as input and produces XBlock as output. In practice, source blocks can be streamed and transformed using a simple translation function backed by an in-memory cache.

   XMsg are associated with an XStream. An XStream is a logical connection between a source and destination chain. It contains many XMsg, each with a monotonically incrementing XStreamOffset (the offset is like a EOA nonce, it is incremented for each subsequent message sent from a source chain to a destination chain). XMsg are therefore uniquely identified and strictly ordered by their associated XStream and XStreamOffset.

   XStreamOffset allows for exactly-once delivery guarantees with strict ordering per source-destination chain pair.

5. Validator Attestation

5. Validators attest to XBlock hashes during consensus. Each Omni consensus layer validator monitors every finalized block for all source chains in halo. Validators need to wait for block finalization, or some other agreed-upon threshold, to ensure consistent and secure cross-chain messaging.

   halo attests via CometBFT vote extensions, all validators in the CometBFT validator set should attest to all XBlock (in addition to their normal validator duties). An attestation is defined by the following Attestation type:

   type Attestation (
     // Composite primary key of XBlock + ValSet
     uint    SourceChainID    // SourceChainID of the XBlock
     uint    BlockHeight      // Source chain block height
     bytes32 BlockHash        // Source chain block hash
     uint    ValidatorSetID   // Unique identifier of current validator set

     bytes32 XBlockRoot       // Merkle root of the XBlock
     bytes32 ValidatorPubkey  // Validator identifier
     bytes32 Signature        // Validator signature of XBlockHash
   )

   Validators return an array of Attestation during the ABCI++ ExtendVote method.

6. Relayer Collects XBlocks

6. Relayers monitoring the Omni consensus layer gather finalized XBlock hashes and their corresponding XBlock and XMsg. Finalized blocks without any XMsg events are ignored. The Relayer submits XMsgs to destination chain that have ⅔ of validator signatures.

   For each destination chain, the relayer decides how many XMsg to submit, which defines the “cost” of transactions being submitted to the destination chain. This is primarily defined by the data size and gas limit of the messages and the portal contract verification and processing overhead.

   A merkle-multi-proof is generated for the set of identified XMsg that match the quorum XBlock attestations root. The relayer submits an EVM transaction to the destination chain, ensuring it gets included on-chain as soon as possible. The transaction contains the following data:

   type Submission (
     AggregateAttestation att    // Aggregate attestation containing quorum signatures for a specific validator set.
     XMsg[]               msgs   // Subset of XMsgs in a XBlock (could also be all)
     bytes                Proofs // Merkle-multi-proof for XMsgBatch
   )

7. Relayer Submits XBlocks

7. For every finalized XBlock hash, relayers construct an XBlock submission containing the XBlock and the validator signatures for the XBlock hashes. Merkle proofs are generated to prove the inclusion of each XMsg in the XBlock hash. This ensures the decoupling of attestations from execution, thereby allowing the relayer to split the execution of an XBlock into many transactions so that it adheres to the constraints of the destination rollup VM.

8. Relayer Submits XMsg

8. The relayer delivers its submissions to the Portal contract on the destination rollup VM. Relayer submissions are defined in Go as:

   // Submission is a cross-chain submission of a set of messages and their proofs.
   type Submission struct {
     AttestationRoot common.Hash // Merkle root of the attestations
     ValidatorSetID  uint64      // Unique identified of the validator set included in this aggregate.
     BlockHeader     BlockHeader // BlockHeader identifies the cross-chain Block
     Msgs            []Msg       // Messages to be submitted
     Proof           [][32]byte  // Merkle multi proofs of the messages
     ProofFlags      []bool      // Flags indicating whether the proof is a left or right proof
     Signatures      []SigTuple  // Validator signatures and public keys
     DestChainID     uint64      // Destination chain ID, for internal use only
   }

9. Portal Verification and Forwarding

9. The receiving Portal contract verifies the XBlock’s validator signatures and XMsg merkle proofs before passing all verified XMsgs to their destination smart contracts on the rollup VM. After validating and processing the submitted XMsg, the portal contract emits an XReceipt event. This marks the XMsg as “successful” or “reverted” by halo. XMsg can revert if the gas limit was exceeded or if target address smart contract logic reverted for other reasons. XReceipt are included in XBlock (same as XMsg).

   type XReceipt (
     uint    SourceChainID         // The cross-chain message's source chain
     uint    XStreamOffset         // Offset of XMsg in the XStream
     uint    GasUsed               // Gas used dueing message "call"
     uint    Result                // 0 for success, 1 for revert
     address RelayerAddress        // Address of relayer that submitted the message
   )

10. Smart Contract Execution

10. The receiving smart contracts execute the logic for their users.
